iLight Plexineon Suspended

Factory Bendable 24V System

Static Color & Dynamic Color

Static Color & Dynamic Color

PixelRGB/RGBW
Overview
Specifications

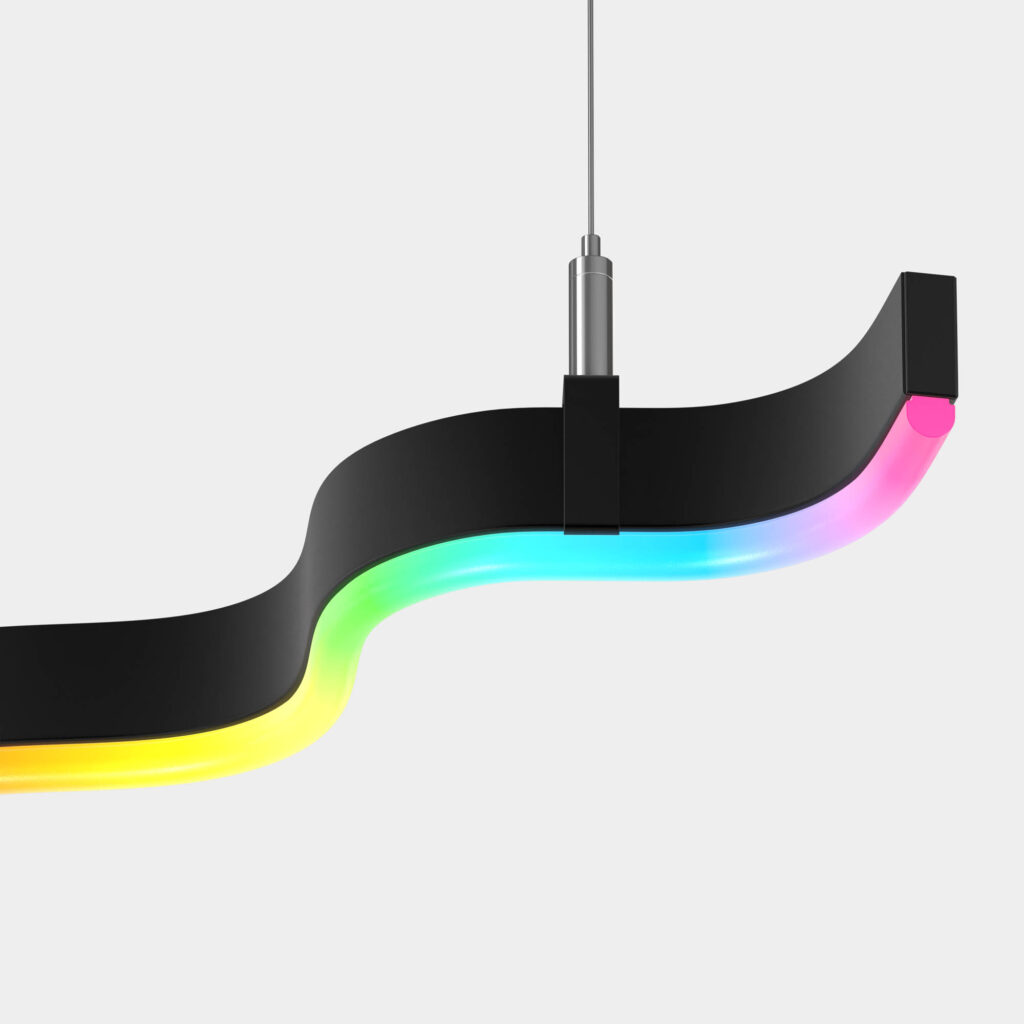

iLight Plexineon Suspended is an architectural-grade rigid linear mount luminaire offering a distinctive alternative to neon lighting. These customizable, made-to-order fixtures adapt to complex applications and are available in a variety of lengths, shapes, and finishes. Designed for suspended installations, they create bold, floating lines of smooth, dot-free illumination.

Available in Dynamic Color or Static Color, the system operates on 24VDC and is IK10 and 3G rated for durability. Dynamic Color features RGB technology with balanced output across the color gamut and true white via RGBW, while Smart Pixel enables cascading and chasing effects. Static Color provides uniform illumination in white (2700K–4000K) and monochrome colors including red, blue, green, teal, yellow, and magenta. The luminaire includes a 5-year indoor warranty.

  • Finishes: Black, Gloss Grey, Matt Grey, White
  • CCT: 2700K, 3000K, 3500K, 4000K, RGB30K
  • CRI: 80+
  • Output Per: 36.1 lm/m, 11 lm/ft, 360.8 lm/m, 110 lm/ft, 403.4 lm/m, 123 lm/ft, 45.9 lm/m, 14 lm/ft, 78.7 lm/m, 24 lm/ft, 164 lm/m, 50 lm/ft, 196.8 lm/m, 60 lm/ft, 203.4 lm/m, 62 lm/ft, 236.2 lm/m, 72 lm/ft, 275.5 lm/m 84 lm/ft
  • Mounting: Suspended
  • Type: Bendable
  • Bend Type: Horizontal
  • Color: Monochrome, Pixel, RGB/RGBW, Static White
  • Wattage Per: 3.9 W/m, 1.2 W/ft, 4.6 W/m, 1.4 W/ft, 4.9 W/m, 1.5 W/ft, 8.5 W/m, 2.6 W/ft, 8.9 W/m, 2.7 W/ft, 9.5 W/m, 2.9 W/ft, 10.5 W/m, 3.2 W/ft, 13.4 W/m, 4.1 W/ft, 17.7 W/m, 5.4 W/ft, 18.7 W/m 5.7 W/ft
  • Lens Aperture: 10.2 mm 0.40 inch
  • Size: 10.2 mm 0.40 in
  • Height: 36.576 mm 1.44 in
  • Lens: Frosted
  • Operating Temperature: 40-60 C -40°F to 140°F
  • Sustainability: RoHS/Reach
  • Manufacturing Details: Made in America
  • Warranty: 5 Years
  • Product Number: PX
